規格 |
工作荷重 |

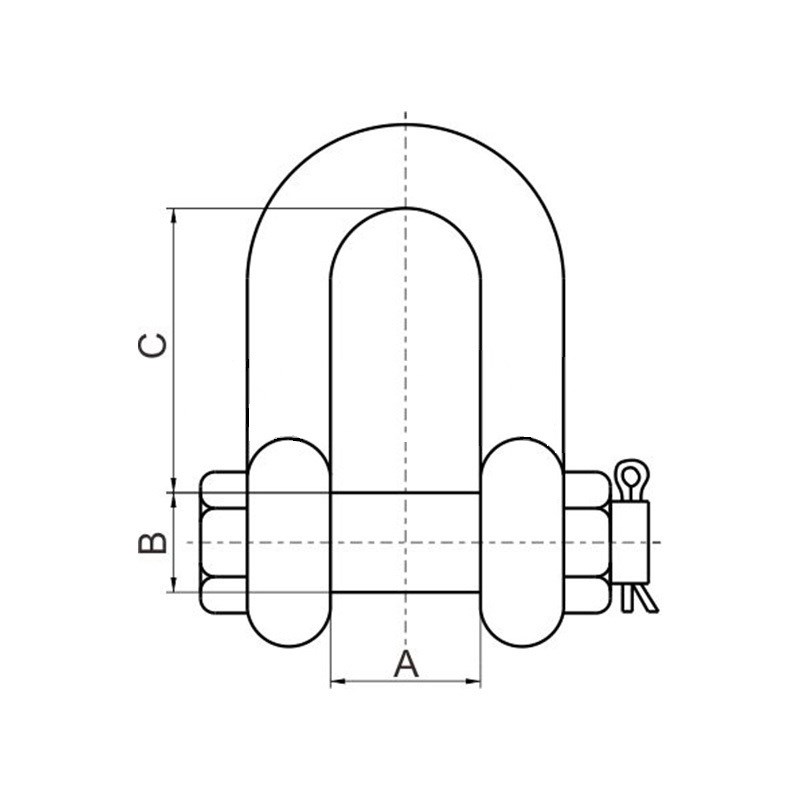

主要尺寸(公厘：mm) |
重量 |
||
|
(英吋：1") |
(噸：T) |
A |
B |
C |
(公斤：kg/個) |
|
1/4 |
0.5 |
11.938 |
7.874 |
23.114 |
0.06 |
|
5/16 |
0.75 |
13.462 |
9.652 |
27.178 |
0.10 |
|
3/8 |
1 |
16.764 |
11.176 |
32.512 |
0.15 |
|
7/16 |
1.5 |
19.05 |
12.7 |
37.592 |
0.22 |
|
1/2 |
2 |
20.574 |
16.002 |
41.402 |
0.34 |
|
5/8 |
3.25 |
26.924 |
19.05 |
50.8 |
0.67 |
|
3/4 |
4.75 |
31.75 |
22.352 |
60.452 |
1.17 |
|
7/8 |
6.5 |
36.576 |
25.4 |
71.374 |
1.75 |
|
1 |
8.5 |
42.926 |
28.702 |
81.026 |
2.52 |
|
1-1/8 |
9.5 |
45.974 |
3175 |
90.932 |
3.45 |
|
1-1/4 |
12 |
51.562 |
35.052 |
100.076 |
4.90 |
|
1-3/8 |
13.5 |
57.15 |
38.1 |
111.252 |
6.27 |
|
1-1/2 |
17 |
60.452 |
41.402 |
122.174 |
8.39 |
|
1-3/4 |
25 |
73.152 |
50.8 |
146.05 |
14.24 |
|
2 |
35 |
82.55 |
57.15 |
171.45 |
21.21 |
|
2-1/2 |
55 |
104.902 |
69.85 |
203.2 |
38.56 |
|
3 |
85 |
127 |
82.55 |
215.9 |
56.36 |
