規格 |
工作荷重 |

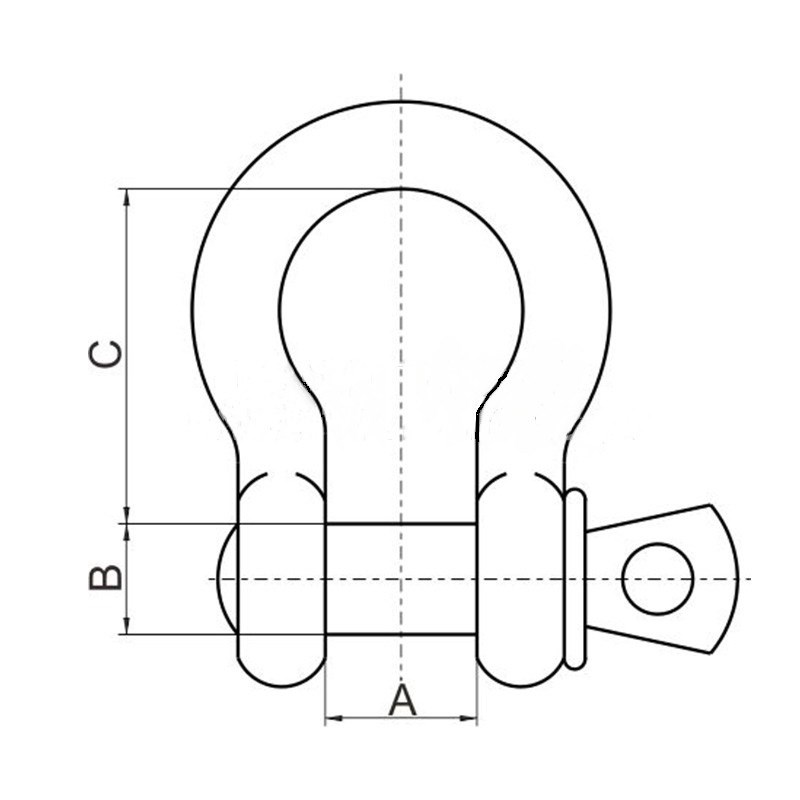

主要尺寸(公厘：mm) |
重量 |
||
|
(英吋：1") |
(噸：T) |
A |
B |
C |
(公斤：kg/個) |
|
3/16 |
0.33 |
9.652 |
6.35 |
22.352 |
0.02 |
|
1/4 |
0.5 |
11.938 |
7.874 |
28.702 |
0.05 |
|
5/16 |
0.75 |
13.462 |
9.652 |
30.988 |
0.09 |
|
3/8 |
1 |
16.764 |
11.176 |
36.576 |
0.14 |
|
7/16 |
1.5 |
19.05 |
12.7 |
42.926 |
0.17 |
|
1/2 |
2 |
20.574 |
16.002 |
47.752 |
0.29 |
|
5/8 |
3.25 |
26.924 |
19.05 |
60.452 |
0.63 |
|
3/4 |
4.75 |
31.75 |
22.352 |
71.374 |
1.02 |
|
7/8 |
6.5 |
36.576 |
25.4 |
84.074 |
1.53 |
|
1 |
8.5 |
42.926 |
28.702 |
95.25 |
2.41 |
|
1-1/8 |
9.5 |
45.974 |
31.75 |
107.95 |
3.09 |
|
1-1/4 |
12 |
51.562 |
35.052 |
119.126 |
4.31 |
|
1-3/8 |
13.5 |
57.15 |
38.1 |
133.35 |
6.01 |
|
1-1/2 |
17 |
60.452 |
41.402 |
146.05 |
7.8 |
|
1-3/4 |
25 |
73.152 |
50.8 |
177.8 |
13.78 |
|
2 |
35 |
82.55 |
57.15 |
196.85 |
20.41 |
|
2-1/2 |
55 |
104.902 |
69.85 |
266.7 |
38.90 |
|
3 |
85 |
127 |
82.55 |
330.2 |
72 |
