規格 |
工作荷重 |

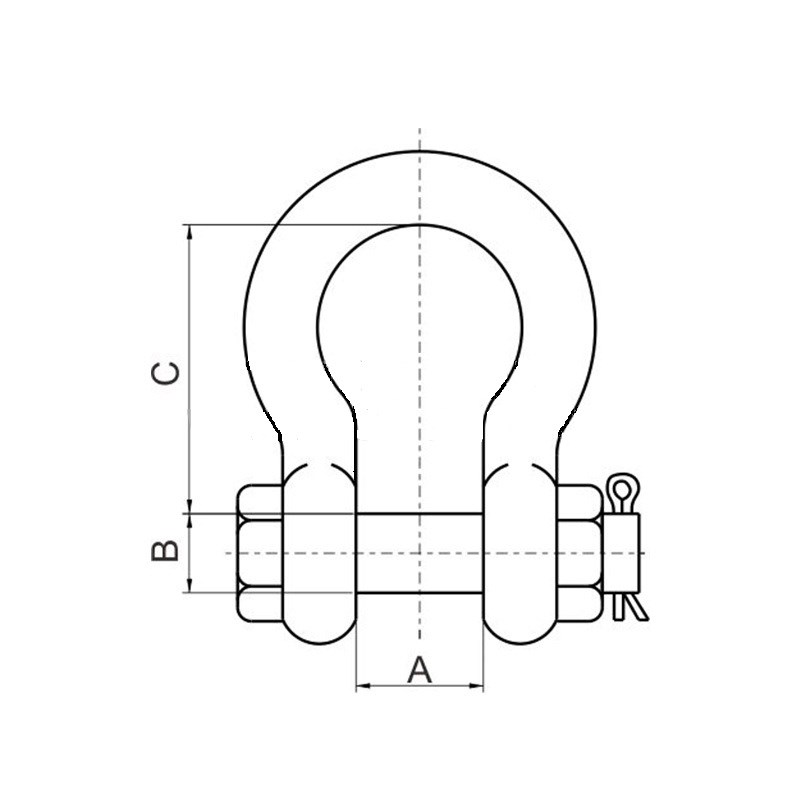

主要尺寸(公厘：mm) |
重量 |
||
|
(英吋：1") |
(噸：T) |
A |
B |
C |
(公斤：kg/個) |
|
1/4 |
0.5 |
11.938 |
7.874 |
28.702 |
0.0 8 |
|
5/16 |
0.75 |
13.462 |
9.652 |
30.988 |
0.10 |
|
3/8 |
1 |
16.764 |
11.176 |
36.576 |
0.15 |
|
7/16 |
1.5 |
19.05 |
12.7 |
42.926 |
0.22 |
|
1/2 |
2 |
20.574 |
16.002 |
47.752 |
0.36 |
|
5/8 |
3.25 |
26.924 |
19.05 |
60.452 |
0.76 |
|
3/4 |
4.75 |
31.75 |
22.352 |
71.374 |
1.23 |
|
7/8 |
6.5 |
36.576 |
25.4 |
84.074 |
1.79 |
|
1 |
8.5 |
42.926 |
28.702 |
95.25 |
2.78 |
|
1-1/8 |
9.5 |
45.974 |
31.75 |
107.95 |
3.75 |
|
1-1/4 |
12 |
51.562 |
35.052 |
119.126 |
5.31 |
|
1-3/8 |
13.5 |
57.15 |
38.1 |
133.35 |
7.18 |
|
1-1/2 |
17 |
60.452 |
41.402 |
146.05 |
9.43 |
|
1-3/4 |
25 |
73.152 |
50.8 |
177.8 |
15.38 |
|
2 |
35 |
82.55 |
57.15 |
196.85 |
23.70 |
|
2-1/2 |
55 |
104.902 |
69.85 |
266.7 |
44.57 |
|
3 |
85 |
127 |
82.55 |
330.2 |
69.85 |
|
3-1/2 |
120 |
133.35 |
95.25 |
368.3 |
1 20.2 |
|
4 |
150 |
139.7 |
107.95 |
371.602 |
1 53.32 |
