工作荷重 |

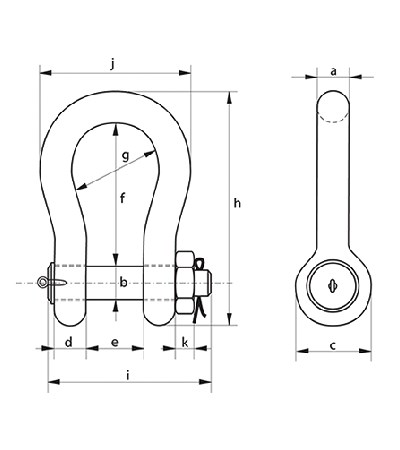

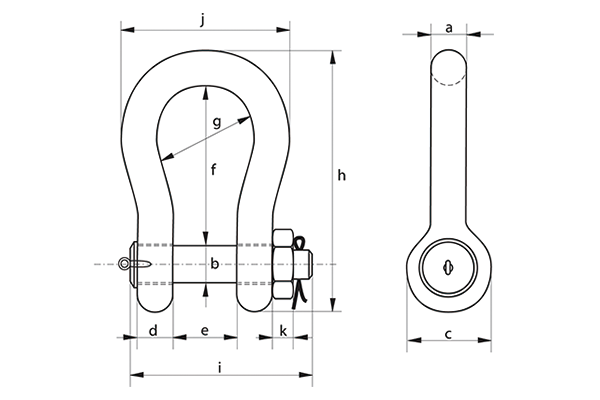

尺寸 |
規格 (mm) |
淨重 |
||||||||||
|
噸(T) |
英吋 |
a |
b |
c |
d |
e |
f |
g |
h |
i |
j |
k |
kg |
|
120 |
3-3/4" |
95 |
95 |
208 |
95 |
147 |
400 |
238 |
647 |
453 |
428 |
50 |
110 |
|
150 |
4-1/8" |
105 |
108 |
238 |
105 |
169 |
410 |
275 |
688 |
496 |
485 |
50 |
160 |
|
200 |
4-23/32" |
120 |
130 |
279 |
120 |
179 |
513 |
290 |
838 |
564 |
530 |
70 |
235 |
|
250 |
5-1/8" |
130 |
140 |
299 |
130 |
205 |
554 |
305 |
904 |
614 |
565 |
70 |
295 |
|
300 |
5-1/2" |
140 |
150 |
325 |
140 |
205 |
618 |
305 |
996 |
644 |
585 |
80 |
368 |
|
400 |
6-11/16" |
170 |
175 |
376 |
164 |
231 |
668 |
325 |
1114 |
690 |
665 |
70 |
560 |
|
500 |
7-3/32" |
180 |
185 |
398 |
164 |
256 |
718 |
350 |
1190 |
720 |
710 |
70 |
685 |
|
600 |
7-7/8" |
200 |
205 |
444 |
189 |
282 |
718 |
375 |
1243 |
810 |
775 |
70 |
880 |
|
700 |
8-9/32" |
210 |
215 |
454 |
204 |
308 |
718 |
400 |
1263 |
870 |
820 |
70 |
980 |
|
800 |
8-9/32" |
210 |
220 |
464 |
204 |
308 |
718 |
400 |
1270 |
870 |
820 |
70 |
1100 |
|
900 |
8-21/32" |
220 |
230 |
485 |
215 |
328 |
718 |
420 |
1296 |
920 |
860 |
70 |
1280 |
|
1000 |
9-7/16" |
240 |
240 |
515 |
215 |
349 |
718 |
420 |
1336 |
940 |
900 |
70 |
1460 |
|
1250 |
10-1/4" |
260 |
270 |
585 |
230 |
369 |
768 |
450 |
1456 |
1025 |
970 |
70 |
1990 |
|
1500 |
11-1/32" |
280 |
290 |
625 |
230 |
369 |
818 |
450 |
1556 |
1025 |
1010 |
70 |
2400 |
