工作荷重 |

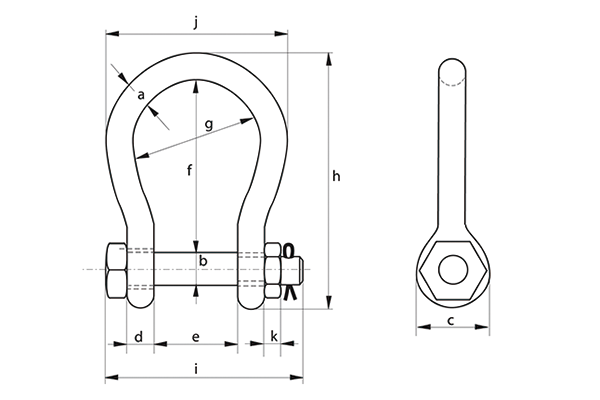

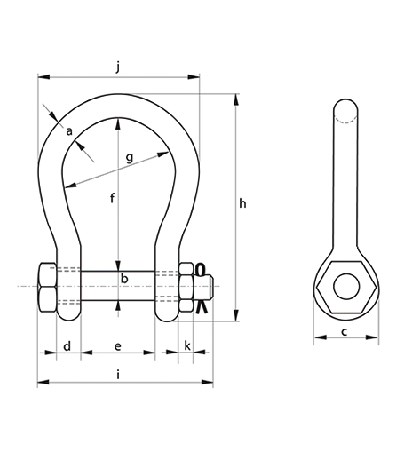

尺寸 |
規格 (mm) |
淨重 |
||||||||||
|
噸(T) |
英吋 |
a |
b |
c |
d |
e |
f |
g |
h |
i |
j |
k |
kg |
|
4.75 |
7/8" |
22 |
25 |
52 |
22 |
63 |
112 |
88 |
173 |
157 |
132 |
22 |
2.08 |
|
6.5 |
1" |
25 |
28 |
59 |
25 |
75 |
135 |
105 |
204 |
183 |
155 |
25 |
3.14 |
|
8.5 |
1-1/8" |
28 |
32 |
66 |
28 |
82 |
148 |
115 |
225 |
205 |
171 |
27 |
4.36 |
|
9.5 |
1-1/4" |
32 |
35 |
72 |
32 |
90 |
162 |
126 |
248 |
224 |
190 |
30 |
5.95 |
|
12 |
1-3/8" |
35 |
38 |
79 |
35 |
100 |
180 |
140 |
274 |
245 |
210 |
33 |
7.87 |
|
16 |
1-1/2" |
38 |
42 |
88 |
38 |
106 |
216 |
159 |
319 |
248 |
235 |
19 |
12.5 |
|
25 |
1-3/4" |
45 |
50 |
103 |
45 |
127 |
248 |
175 |
370 |
296 |
265 |
23 |
16.7 |
|
30 |
2" |
50 |
57 |
118 |
50 |
146 |
273 |
207 |
411 |
332 |
307 |
26 |
25 |
|
55 |
2-1/2" |
65 |
70 |
145 |
65 |
165 |
314 |
213 |
487 |
389 |
343 |
32 |
45 |
|
75 |
3-1/4" |
83 |
83 |
164 |
83 |
184 |
330 |
254 |
537 |
455 |
420 |
39 |
77 |
