工作荷重 |
尺寸 |

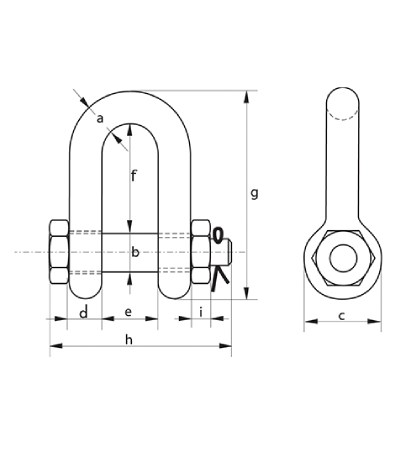

規格 (mm) |
淨重 |
||||||||
|
噸(T) |
英吋 |
a |
b |
c |
d |
e |
f |
g |
h |
i |
kg |
|
2 |
1/2" |
13.5 |
16 |
34 |
13 |
22 |
43 |
81 |
82 |
13 |
0.39 |
|
3.25 |
5/8" |
16 |
19 |
40 |
16 |
27 |
51 |
97 |
98 |
17 |
0.67 |
|
4.75 |
3/4" |
19 |
22 |
46 |
19 |
31 |
59 |
112 |
114 |
19 |
1.08 |
|
6.5 |
7/8" |
22 |
25 |
52 |
22 |
36 |
73 |
134 |
130 |
22 |
1.66 |
|
8.5 |
1" |
25 |
28 |
59 |
25 |
43 |
85 |
154 |
150 |
25 |
2.46 |
|
9.5 |
1-1/8" |
28 |
32 |
66 |
28 |
47 |
90 |
167 |
166 |
27 |
3.4 |
|
12 |
1-1/4" |
32 |
35 |
72 |
32 |
51 |
94 |
180 |
178 |
30 |
4.51 |
|
13.5 |
1-3/8" |
35 |
38 |
80 |
35 |
57 |
115 |
209 |
197 |
33 |
6.1 |
|
17 |
1-1/2" |
38 |
42 |
88 |
38 |
60 |
127 |
230 |
202 |
19 |
7.63 |
|
25 |
1-3/4" |
45 |
50 |
103 |
45 |
74 |
149 |
271 |
249 |
23 |
12.88 |
|
35 |
2" |
50 |
57 |
111 |
50 |
83 |
171 |
305 |
269 |
26 |
17.35 |
|
42.5 |
2-1/4" |
57 |
65 |
130 |
57 |
95 |
190 |
345 |
301 |
29 |
25.94 |
|
55 |
2-1/2" |
65 |
70 |
145 |
65 |
105 |
203 |
376 |
330 |
32 |
35.33 |
|
85 |
3" |
75 |
83 |
162 |
73 |
127 |
229 |
427 |
380 |
39 |
52.97 |
