工作荷重 |

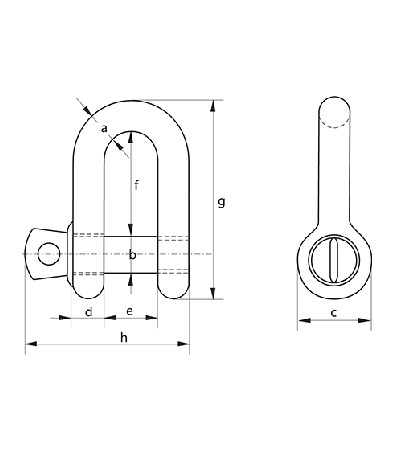

尺寸 |
規格 (mm) |
淨重 |
|||||||
|
噸(T)_ |
英吋 |
a |
b |
c |
d |
e |
f |
g |
h |
kg |
|
0.33 |
3/16" |
5 |
6 |
12 |
5 |
9.5 |
19 |
33 |
29.5 |
0.02 |
|
0.5 |
1/4" |
7 |
8 |
16.5 |
7 |
12 |
22 |
41.5 |
38 |
0.05 |
|
0.75 |
5/16" |
9 |
10 |
20 |
9 |
13.5 |
26 |
50 |
46.5 |
0.09 |
|
1 |
3/8" |
10 |
11 |
22.5 |
10 |
17 |
32 |
59 |
54 |
0.14 |
|
1.5 |
7/16" |
11 |
13 |
26.5 |
11 |
19 |
37 |
68 |
59.5 |
0.19 |
|
2 |
1/2" |
13.5 |
16 |
34 |
13 |
22 |
43 |
81 |
73 |
0.32 |
|
3.25 |
5/8" |
16 |
19 |
40 |
16 |
27 |
51 |
97 |
89 |
0.54 |
|
4.75 |
3/4" |
19 |
22 |
46 |
19 |
31 |
59 |
112 |
103 |
0.87 |
|
6.5 |
7/8" |
22 |
25 |
52 |
22 |
36 |
73 |
134 |
119 |
1.34 |
|
8.5 |
1" |
25 |
28 |
59 |
25 |
43 |
85 |
154 |
137 |
2.08 |
|
9.5 |
1-1/8" |
28 |
32 |
66 |
28 |
47 |
90 |
167 |
153 |
2.77 |
|
12 |
1-1/4" |
32 |
35 |
72 |
32 |
51 |
94 |
180 |
170 |
3.72 |
|
13.5 |
1-3/8" |
35 |
38 |
80 |
35 |
57 |
115 |
209 |
186 |
5.14 |
|
17 |
1-1/2" |
38 |
42 |
88 |
38 |
60 |
127 |
230 |
203 |
6.85 |
|
25 |
1-3/4" |
45 |
50 |
103 |
45 |
74 |
149 |
271 |
243 |
11.45 |
|
35 |
2" |
50 |
57 |
111 |
50 |
83 |
171 |
305 |
272 |
16.86 |
|
42.5 |
2-1/4" |
57 |
65 |
130 |
57 |
95 |
190 |
345 |
310 |
24.61 |
|
55 |
2-1/2" |
65 |
70 |
145 |
65 |
105 |
203 |
376 |
344 |
32.65 |
