工作荷重 |

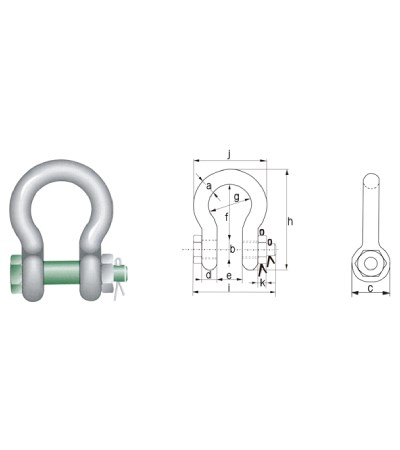

尺寸 |
規格 (mm) |
淨重 |
||||||||||
|
噸(T) |
英吋 |
a |
b |
c |
d |
e |
f |
g |
h |
i |
j |
k |
kg |
|
0.5 |
1/4" |
7 |
8 |
16.5 |
7 |
12 |
29 |
20 |
48.5 |
42 |
34 |
4 |
0.06 |
|
0.75 |
5/16" |
9 |
10 |
20 |
9 |
13.5 |
32 |
22 |
56 |
50 |
40 |
5 |
0.11 |
|
1 |
3/8" |
10 |
11 |
22.5 |
10 |
17 |
36.5 |
26 |
63.5 |
60 |
46 |
8 |
0.16 |
|
1.5 |
7/16" |
11 |
13 |
26.5 |
11 |
19 |
43 |
29 |
74 |
67 |
51 |
11 |
0.22 |
|
2 |
1/2" |
13.5 |
16 |
34 |
13 |
22 |
51 |
32 |
89 |
82 |
58 |
13 |
0.42 |
|
3.25 |
5/8" |
16 |
19 |
40 |
16 |
27 |
64 |
43 |
110 |
98 |
75 |
17 |
0.74 |
|
4.75 |
3/4" |
19 |
22 |
46 |
19 |
31 |
76 |
51 |
129 |
114 |
89 |
19 |
1.18 |
|
6.5 |
7/8" |
22 |
25 |
52 |
22 |
36 |
83 |
58 |
144 |
130 |
102 |
22 |
1.77 |
|
8.5 |
1" |
25 |
28 |
59 |
25 |
43 |
95 |
68 |
164 |
150 |
118 |
25 |
2.58 |
|
9.5 |
1-1/8" |
28 |
32 |
66 |
28 |
47 |
108 |
75 |
185 |
166 |
131 |
27 |
3.66 |
|
12 |
1-1/4" |
32 |
35 |
72 |
32 |
51 |
115 |
83 |
201 |
178 |
147 |
30 |
4.91 |
|
13.5 |
1-3/8" |
35 |
38 |
80 |
35 |
57 |
133 |
92 |
227 |
197 |
162 |
33 |
6.54 |
|
17 |
1-1/2" |
38 |
42 |
88 |
38 |
60 |
146 |
99 |
249 |
202 |
175 |
19 |
8.19 |
|
25 |
1-3/4" |
45 |
50 |
103 |
45 |
74 |
178 |
126 |
300 |
249 |
216 |
23 |
14.22 |
|
35 |
2" |
50 |
57 |
111 |
50 |
83 |
197 |
138 |
331 |
269 |
238 |
26 |
19.53 |
|
42.5 |
2-1/4" |
57 |
65 |
130 |
57 |
95 |
222 |
160 |
377 |
301 |
274 |
29 |
28.33 |
|
55 |
2-1/2" |
65 |
70 |
145 |
65 |
105 |
260 |
180 |
433 |
330 |
310 |
32 |
39.59 |
|
85 |
3" |
75 |
83 |
162 |
73 |
127 |
329 |
190 |
527 |
380 |
340 |
39 |
62 |
