工作荷重 |

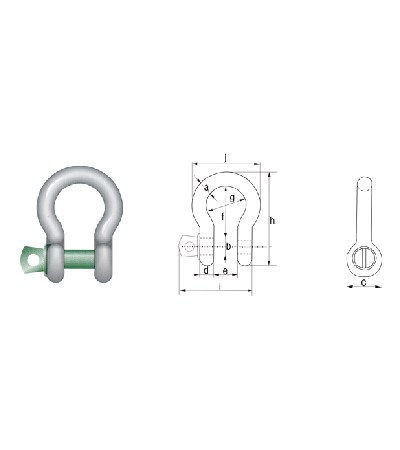

尺寸 |
規格 (mm) |
淨重 |
|||||||||
|
噸(T) |
英吋 |
a |
b |
c |
d |
e |
f |
g |
h |
i |
j |
kg |
|
0.33 |
3/16" |
5 |
6 |
12 |
5 |
9.5 |
22 |
16 |
36 |
29.5 |
26 |
0.02 |
|
0.5 |
1/4" |
7 |
8 |
16.5 |
7 |
12 |
29 |
20 |
48.5 |
38 |
34 |
0.05 |
|
0.75 |
5/16" |
9 |
10 |
20 |
9 |
13.5 |
32 |
22 |
56 |
46.5 |
40 |
0.1 |
|
1 |
3/8" |
10 |
11 |
22.5 |
10 |
17 |
36.5 |
26 |
63.5 |
54 |
46 |
0.14 |
|
1.5 |
7/16" |
11 |
13 |
26.5 |
11 |
19 |
43 |
29 |
74 |
59.5 |
51 |
0.19 |
|
2 |
1/2" |
13.5 |
16 |
34 |
13 |
22 |
51 |
32 |
89 |
73 |
58 |
0.36 |
|
3.25 |
5/8" |
16 |
19 |
40 |
16 |
27 |
64 |
43 |
110 |
89 |
75 |
0.63 |
|
4.75 |
3/4" |
19 |
22 |
46 |
19 |
31 |
76 |
51 |
129 |
103 |
89 |
1.01 |
|
6.5 |
7/8" |
22 |
25 |
52 |
22 |
36 |
83 |
58 |
144 |
119 |
102 |
1.5 |
|
8.5 |
1" |
25 |
28 |
59 |
25 |
43 |
95 |
68 |
164 |
137 |
118 |
2.21 |
|
9.5 |
1-1/8" |
28 |
32 |
66 |
28 |
47 |
108 |
75 |
185 |
153 |
131 |
3.16 |
|
12 |
1-1/4" |
32 |
35 |
72 |
32 |
51 |
115 |
83 |
201 |
170 |
147 |
4.31 |
|
13.5 |
1-3/8" |
35 |
38 |
80 |
35 |
57 |
133 |
92 |
227 |
186 |
162 |
5.55 |
|
17 |
1-1/2" |
38 |
42 |
88 |
38 |
60 |
146 |
99 |
249 |
203 |
175 |
7.43 |
|
25 |
1-3/4" |
45 |
50 |
103 |
45 |
74 |
178 |
126 |
300 |
243 |
216 |
12.84 |
|
35 |
2" |
50 |
57 |
111 |
50 |
83 |
197 |
138 |
331 |
272 |
238 |
18.15 |
|
42.5 |
2-1/4" |
57 |
65 |
130 |
57 |
95 |
222 |
160 |
377 |
310 |
274 |
26.29 |
|
55 |
2-1/2" |
65 |
70 |
145 |
65 |
105 |
260 |
180 |
433 |
344 |
310 |
37.6 |
